creating a matrix

[dr3amxstar]

Hi.. Im new to visual basic 2005 express edition and need some help. I am currently doing a project on developing Artifical Neural Network and is kind of stuck

First of all, i need to store values from 3 textbox into a matrix and then multiply it with another matrix ( Standard number). Can anyone tell me how do i go about doing it?

Thanks!

[Killer42]

There may be better ways, but the simplest would be to store them in an array, then use a loop to run through the array and do the multiplication. For more than one dimension, just use nested loops.

[dr3amxstar]

There may be better ways, but the simplest would be to store them in an array, then use a loop to run through the array and do the multiplication. For more than one dimension, just use nested loops.

Hihi thanks for the help! I did thought of arrays too but im dealing with matrix size of up to 40 x 273. Do you mind given me an example of how to create a array of more then one dimension using nested loops?

[danp129]

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim myarray(0 To 39, 0 To 272) As Long
        Dim lngcounter&, x&, y& ' & means ' as long'

        'set values with value of counter
        For x = 0 To 39
            For y = 0 To 272
                myarray(x, y) = lngcounter
                lngcounter = lngcounter + 1
            Next 'y
        Next 'x


        'print out values in array
        For x = 0 To 39
            For y = 0 To 272
                Debug.Print("x" & x & "," & "y" & y & "=" & myarray(x, y))
            Next 'y
        Next 'x


        'multiply two values
        Debug.Print(myarray(20, 20) & " * " & myarray(30, 30) & "=" & myarray(20, 20) * myarray(30, 30))

x0,y0=0
x0,y1=1
x0,y2=2
x0,y3=3
.....
x39,y270=10917
x39,y271=10918
x39,y272=10919
5480 * 8220=45045600

[Killer42]

Thanks Dan.

I'd just like to point out that the type declaration characters like "&" are basically the old way of doing it, and generally not recommended. "As Long" makes for code that's much easier to read.

[danp129]

Thanks Dan.

I'd just like to point out that the type declaration characters like "&" are basically the old way of doing it, and generally not recommended. "As Long" makes for code that's much easier to read.

Yeah but I don't like typing it multiple times and I did include what it meant :)

[Killer42]

Yeah but I don't like typing it multiple times and I did include what it meant :)

Fair enough.

I wasn't correcting you, it was just meant as a bit of a heads-up to the OP. Which way you do it is pretty much a matter of personal preference, as long as they're both supported. I think we can safely assume that the results are exactly the same either way.

[dr3amxstar]

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim myarray(0 To 39, 0 To 272) As Long
        Dim lngcounter&, x&, y& ' & means ' as long'

        'set values with value of counter
        For x = 0 To 39
            For y = 0 To 272
                myarray(x, y) = lngcounter
                lngcounter = lngcounter + 1
            Next 'y
        Next 'x


        'print out values in array
        For x = 0 To 39
            For y = 0 To 272
                Debug.Print("x" & x & "," & "y" & y & "=" & myarray(x, y))
            Next 'y
        Next 'x


        'multiply two values
        Debug.Print(myarray(20, 20) & " * " & myarray(30, 30) & "=" & myarray(20, 20) * myarray(30, 30))

x0,y0=0
x0,y1=1
x0,y2=2
x0,y3=3
.....
x39,y270=10917
x39,y271=10918
x39,y272=10919
5480 * 8220=45045600

Hihi Thanks alot for all the help! I used just a single dimension previously until i saw ur code and found out that its better. But may i know what is the difference between one dimension and 2 dimension?

[Killer42]

Hihi Thanks alot for all the help! I used just a single dimension previously until i saw ur code and found out that its better. But may i know what is the difference between one dimension and 2 dimension?

Well, it's just like the difference between a list and a grid. In a one-dimensional array each element is identified by one index. In a two-dimensional array, each is identified by two indices. So any time you have a series of values which are dependent on two things (such as an X and Y coordinate), a two-dimensional array may be a convenient way to store them.

It is usual to think of, and graphically represent, a two-dimensional array as a square, with coordinates like those used in a street directory map, or on a computer screen, or a spreadsheet. A three-dimensional array is typically shown as representing a position within a cube. But in fact you can have pretty much any number of dimensions in an array - they just get harder to visualise, the more you have.

[dr3amxstar]

Thanks to all of the help given , i have been able to draft out the body for my artificial neural network. But the problem i encountered now is how to feed in inputs from files to my program automatically. I have 13 files each looking like this

HKSEVAHRFKDLGEE NFKALVLIAFAQYLQ QCPFEDHVKLVHKSE VAHRFKDLGEENFKA LVLIAFAQYLQQCP -> Input
LLLHHHHHHHHHHHH HHHHHHHHHHHHHHL LLLLHHHHHHHLLLH HHHHHHHHHHHHHHH HHHHHHHHHHLLLL -> desired output

HKSEVAHRFKDLGEE NFKALVLIAFAQYLQ QCPFEDHVKLVHKSE VAHRFKDLGEENFKA LVLIAFAQYLQQCP -> Input
LLLHHHHHHHHHHHH HHHHHHHHHHHHHHL LLLLHHHHHHHLLLH HHHHHHHHHHHHHHH HHHHHHHHHHLLLL -> desired output

(whole pages full of sets of 2 lines)

This are my training sets






The alphabets are amino acid and are to be converted to 21 bits using sparse code. I have to create a window size of 13 ( input is 13 at one time), where by the desired output of the middle amino acid will be used for calculation in the middle of the program.

How do i go about to let my program automatically load the file(total of 13 such files) from my computer drive, make it window slide 13 at a time and i will take the desired output of the middle of the 13 inputs( convert all the sparse coding for processing). *6 x will have to be included at the start so that the first alphabet can be at the middle. Should i store all this is a 2 dimensional array? Is this confusing?

[Killer42]

...Is this confusing?

Yes!

Sorry, but I got completely lost.

I'm having great difficulty understanding the goal. But from what I have seen, if we can get past that, I'd say the actual code will be fairly simple.

[dr3amxstar]

Yes!

Sorry, but I got completely lost.

I'm having great difficulty understanding the goal. But from what I have seen, if we can get past that, I'd say the actual code will be fairly simple.

Haha i also dont know what i am blabbering. Maybe to simplify :
1) how do i read files from my directory on my computer to the program?

2) Does the program reads line by line? How do i make it read the second line or third automatically after the first line is completed

3) Is there a code that actually enable the program to open and read another new file after it is done with the current file.

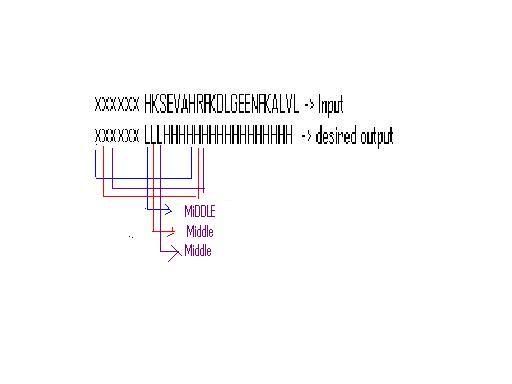

3) is there a function that does sliding from one word to another? because at any one time i only want 13 alphabets from that long string and after one loops it moves to the next alphabet like this :



For every 13 alphabet in the first row ( first line)(store all 13 in array), i also want the number 7 alphabet out of the 13 alphabet in the second row (second line). thats why i have to process one by one because in one loop there can be only one desired output(alphabet s in second row) and 13 inputs( alphabets in first row)
Thanks a thousand!

[Killer42]

Haha i also dont know what i am blabbering. Maybe to simplify :
1) how do i read files from my directory on my computer to the program?

2) Does the program reads line by line? How do i make it read the second line or third automatically after the first line is completed

3) Is there a code that actually enable the program to open and read another new file after it is done with the current file.

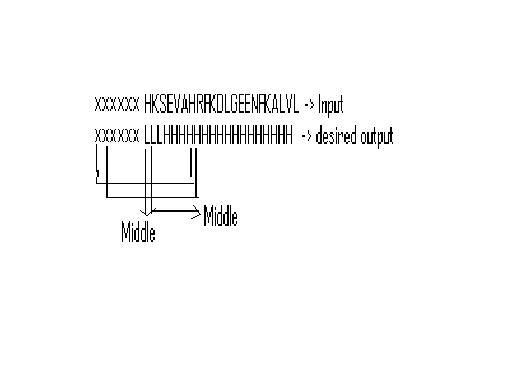

3) is there a function that does sliding from one word to another? because at any one time i only want 13 alphabets from that long string and after one loops it moves to the next alphabet like this :

<img>

For every 13 alphabet in the first row ( first line)(store all 13 in array), i also want the number 7 alphabet out of the 13 alphabet in the second row (second line). thats why i have to process one by one because in one loop there can be only one desired output(alphabet s in second row) and 13 inputs( alphabets in first row)
Thanks a thousand!

Hm... well, I feel I'm gradually progressing toward an understanding. Certainly the file handling sounds simple enough.

Actually, this is good timing. I've just recently put a couple of samples in the Articles section that show how to read a text file. One reads line by line, the other reads it in one go, into one big string. Check out the index at the top of the section. Perhaps you can give me some feedback on whether the code samples are actually any use. It's hard for me to judge, since I wrote them.

Also, as far as looping through the files, there are a couple of techniques you can use.

There's the built-in Dir() function. When you pass it a string, it will return the name of the first file that matches. Pass it nothing, it will look for the next one. For example, this code displays the names of all files in the C: drive root directory (though hopefully there wouldn't be very many.

[CODE=vb]Dim FileName As String
FileName = Dir("C:\*.*")
Do While FileName <> ""
Debug.Print FileName
FileName = Dir
Loop[/CODE]

Then there is FilesystemObjec t. To use this, you must add a reference to Microsoft Scripting Runtime to your project. And it's a little more complex to work with. But it offers a lot of useful functionality when working with drives, folders and files.

As for processing one file after another, the above Do While loop could just as easily be calling a routine to do something with the files, rather than just printing their names to the debugging window. (One thing to keep in mind with this sort of technique is that Dir returns only the filename, no path.)

I'm still having some trouble with the "alphabet" thing. For starters, what is it that you are referring to as "an alphabet"? When you say, for instance, "For every 13 alphabet in the first row" do you mean for every 13 characters?

[dr3amxstar]

I'm still having some trouble with the "alphabet" thing. For starters, what is it that you are referring to as "an alphabet"? When you say, for instance, "For every 13 alphabet in the first row" do you mean for every 13 characters?

Haha all this seems like stranger to me but i will go and learn! Really thanks for your advice and thanks for guiding me to the right path!

Haha i think "alphabets" is the same as characters? Because in my notepad it does not contain normal words or sentences. It is filled with this :

HKSEVAHRFKDLGRR N
LLLHHHHHHHLLLHH HH

This is not in any wierd language but just that each alphabets represent an amino acid. I will have to program it such that it takes in 13 "alphabets" or characters at one time, then during the second loop it will shift one alphabets to the right and take in another 13 characters. haha do i make sense?

[dr3amxstar]

Hi i went to the code you posted. I am quite slow at understanding so need some help there. Correct me if im wrong, does it LineNo = LineNo + 1 means that it automatically gets the next line instead of keep typing a lot of these :
StrVar = readerVar.ReadL ine
StrVar = readerVar.ReadL ine

What is FileNo = FreeFile?

Where is the part in the code that allows me to put in the directory or file name to be included in my program. Hope what i say make sense!
