Hello I'm having trouble, BIG trouble programing a GM862 from telit.
First of all I'm using pic18f45k20, using development kit pickit3.

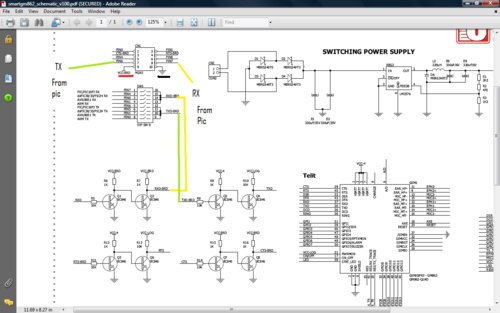

I've been trying to communicate with the pickit to the GM862 using UART (connecting TX and RX), I read online that it is fairly simple etc.. but it doesn't work for me..
I think the problem is my UART, I'm not sure how it works and I dont get any thing....
Below is the code I'm using deriving from the sample given from the vendor...
If someone can really help me on that! This is my final project to graduate! thank youuu...
First of all I'm using pic18f45k20, using development kit pickit3.
I've been trying to communicate with the pickit to the GM862 using UART (connecting TX and RX), I read online that it is fairly simple etc.. but it doesn't work for me..
I think the problem is my UART, I'm not sure how it works and I dont get any thing....
Below is the code I'm using deriving from the sample given from the vendor...
If someone can really help me on that! This is my final project to graduate! thank youuu...
Code:
#include <p18f45k20.h>
#include <usart.h>
#include <delays.h>
#include <string.h>
#include <stdio.h>
#define in usart.h
#define in usart.h
// set of AT commands
const char atc1[] = "ATE0"; // disable command echo
const char atc2[] = "AT# CAP= 1"; // enables handsfree external mic/ear audio path
const char atc3[] = "ATD19168214521;"; // place a call to phone number 123456789
// instead of 123456789 insert your phone number
const char atc4[] = "ATH"; // hang up
const char atc5[] = "ATA"; // answer a call
const char atc6[] = "AT#HFMICG=4"; // handsfree microphone gain
const char atc7[] = "AT#SHFEC=1"; // handsfree echo canceller
const char atc8[] = "AT+CLVL=12"; // loudspeaker volume level
const char atc9[] = "AT#SRS= 3,0"; // select ringer sound
const char atc10[] = "ATS0=0"; // number of rings to auto answer (auto answer disabled)
int GSM_OK = 0;
int GSM_RING = 1;
char gsm_state = 0;
char response_rcvd = 0;
short responseID = -1, response = -1;
// copy const to ram string
char * CopyConst2Ram(char * dest, const char * src){
char * d ;
d = dest;
for(;*dest++ = *src++;)
;
return d;
}
void interrupt() {
char tmp;
if (PIR1bits.RCIF == 1) {
tmp = ReadUSART();
switch (gsm_state) {
case 0: {
response = -1; // clear response
if (tmp == 'O') // we have 'O', it could be "OK"
gsm_state = 1; // expecting 'K'
if (tmp == 'R') // we have 'R', it could be "RING"
gsm_state = 10; // expecting 'I'
break;
}
case 1: {
if (tmp == 'K') { // we have 'K' ->
response = GSM_OK; // we have "OK" response
gsm_state = 50; // expecting CR+LF
}
else
gsm_state = 0; // reset state machine
break;
}
case 10: {
if (tmp == 'I') // we have 'I', it could be "RING"
gsm_state = 11; // expecting 'N'
else
gsm_state = 0; // reset state machine
break;
}
case 11: {
if (tmp == 'N') // we have 'N', it could be "RING"
gsm_state = 12; // expecting 'G'
else
gsm_state = 0; // reset state machine
break;
}
case 12: {
if (tmp == 'G') { // we have 'G' ->
response = GSM_RING; // we have "RING" response
gsm_state = 50; // expecting CR+LF
}
else
gsm_state = 0; // reset state machine
break;
}
case 50: {
if (tmp == 13) // we have 13, it could be CR+LF
gsm_state = 51; // expecting LF
else
gsm_state = 0; // reset state machine
break;
}
case 51: {
if (tmp == 10) { // we have LF, response is complete
response_rcvd = 1; // set reception flag
responseID = response; // set response ID
}
gsm_state = 0; // reset state machine
break;
}
default: { // unwanted character
gsm_state = 0; // reset state machine
break;
}
}
}
}
// send ATC command
void send_atc(const char *s)
{
// send command string
while(*s) {
WriteUSART(*s++);
}
// terminate command with CR
WriteUSART(0x0D);
}
// get GSM response, if there is any
short get_response() {
if (response_rcvd) {
response_rcvd = 0;
return responseID;
}
else
return -1;
}
// wait for GSM response
void wait_response(char rspns) {
while (get_response() != rspns)
;
}
// pause
void wait() {
Delay1KTCYx(1000);
}
void main(){
/*************199********************************************************************************************************************/
// all pins as digital I/Os
ANSEL = 0;
ANSELH = 0;
// set PORTD inputs
TRISDbits.TRISD0 = 1; // place a call input
TRISDbits.TRISD1 = 1; // hang up input
TRISDbits.TRISD2 = 1; // answer a call input
TRISDbits.TRISD3 = 1; // continue with PIC program
// set RTS pin to zero, we will use only RX i TX
TRISCbits.TRISC3 = 0;
PORTCbits.RC3 = 0;
// enable uart rx interrupt
PIE1bits.RCIE = 1;
INTCONbits.PEIE = 1;
INTCONbits.GIE = 1;
/*215********************************************************************************************************************************/
// initialize USART module
putrsUSART ((const far rom char *)"AT+IPR=19200\r");
Delay1KTCYx(5000); // wait for the GSM module to initialize it self
// negotiate baud rate
while(1) {
send_atc("AT"); // send "AT" string until gsm sets up its baud rade
Delay1KTCYx(100); // and gets it correctly
if (get_response() == GSM_OK) // if gsm says "OK" on our baud rate we got it
break;
}
// disable command echo
send_atc(atc1);
wait_response(GSM_OK);
send_atc(atc3);
wait_response(GSM_OK);
// change audio path (enables handsfree external mic/ear audio path)
send_atc(atc2);
wait_response(GSM_OK);
// handsfree microphone gain
send_atc(atc6);
wait_response(GSM_OK);
// handsfree echo canceller
send_atc(atc7);
wait_response(GSM_OK);
// loudspeaker volume level
send_atc(atc8);
wait_response(GSM_OK);
// select ringer sound
send_atc(atc9);
wait_response(GSM_OK);
// number of rings to auto answer (auto answer disabled)
send_atc(atc10);
wait_response(GSM_OK);
}
