Grid View (Table list) in tkinter

[AruzV]

Is there any data grid sample for tkinter?

[bvdet]

AruzV,

Can you be more specific? Are you looking for an example of a Tkinter widget using the grid geometry manager?

[AruzV]

I need a sample table viewer in tkinter like excell or any database viewer. It must have Columns and rows and headers. Like this.

_|_A_|_B_|_C_|_ D_|_E_|
1|___|___|___|_ __|___|
2|___|___|___|_ __|___|
3|___|___|___|_ __|___|
4|___|___|___|_ __|___|
5|___|___|___|_ __|___|

[bvdet]

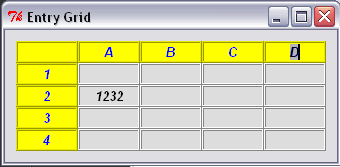

Have you tried to code this for yourself? Do you know anything about Tkinter? Is this homework? I can provide code to parametrically build a grid like you describe, but we are not here to provide code to people without some effort on their part. I attached an image of a grid of Tkinter.Entry widgets. The column and row headers are not modifiable. Characters can be entered into the open grids. The fields are bound to '<FocusOut>' (prints field contents if not blank, destroys the top level widget if 'exit' is entered).

BV - Moderator

[AruzV]

I am newer in python and tkinter. This is not my homework. I am not a student. I couldn't find any widget. Is there a widget for table view like this:

>>>dview=tkinte r.tableview()
>>>dview.pack ()
>>>dview.cell[2][3].text="some string"
>>>dview.cell[2][4].image="someima ge.png"
>>>dbutton=dvie w.cell[1][1].button

but I couldnt find in google. There are some samples but they are not enough for me.

[bvdet]

In that case, I have no problem posting sample code. Type "demo" into one of the cells and tab out to see what happens.

import Tkinter
from time import sleep

textFont1 = ("Arial", 10, "bold italic")
textFont2 = ("Arial", 16, "bold")
textFont3 = ("Arial", 8, "bold")

class LabelWidget(Tkinter.Entry):
    def __init__(self, master, x, y, text):
        self.text = Tkinter.StringVar()
        self.text.set(text)
        Tkinter.Entry.__init__(self, master=master)
        self.config(relief="ridge", font=textFont1,
                    bg="#ffffff000", fg="#000000fff",
                    readonlybackground="#ffffff000",
                    justify='center',width=8,
                    textvariable=self.text,
                    state="readonly")
        self.grid(column=x, row=y)

class EntryWidget(Tkinter.Entry):
    def __init__(self, master, x, y):
        Tkinter.Entry.__init__(self, master=master)
        self.value = Tkinter.StringVar()
        self.config(textvariable=self.value, width=8,
                    relief="ridge", font=textFont1,
                    bg="#ddddddddd", fg="#000000000",
                    justify='center')
        self.grid(column=x, row=y)
        self.value.set("")

class EntryGrid(Tkinter.Tk):
    ''' Dialog box with Entry widgets arranged in columns and rows.'''
    def __init__(self, colList, rowList, title="Entry Grid"):
        self.cols = colList[:]
        self.colList = colList[:]
        self.colList.insert(0, "")
        self.rowList = rowList
        Tkinter.Tk.__init__(self)
        self.title(title)

        self.mainFrame = Tkinter.Frame(self)
        self.mainFrame.config(padx='3.0m', pady='3.0m')
        self.mainFrame.grid()
        self.make_header()

        self.gridDict = {}
        for i in range(1, len(self.colList)):
            for j in range(len(self.rowList)):
                w = EntryWidget(self.mainFrame, i, j+1)
                self.gridDict[(i-1,j)] = w.value
                def handler(event, col=i-1, row=j):
                    return self.__entryhandler(col, row)
                w.bind(sequence="<FocusOut>", func=handler)
        self.mainloop()

    def make_header(self):
        self.hdrDict = {}
        for i, label in enumerate(self.colList):
            def handler(event, col=i, row=0, text=label):
                return self.__headerhandler(col, row, text)
            w = LabelWidget(self.mainFrame, i, 0, label)
            self.hdrDict[(i,0)] = w
            w.bind(sequence="<KeyRelease>", func=handler)

        for i, label in enumerate(self.rowList):
            def handler(event, col=0, row=i+1, text=label):
                return self.__headerhandler(col, row, text)
            w = LabelWidget(self.mainFrame, 0, i+1, label)
            self.hdrDict[(0,i+1)] = w
            w.bind(sequence="<KeyRelease>", func=handler)

    def __entryhandler(self, col, row):
        s = self.gridDict[(col,row)].get()
        if s.upper().strip() == "EXIT":
            self.destroy()
        elif s.upper().strip() == "DEMO":
            self.demo()
        elif s.strip():
            print s

    def demo(self):
        ''' enter a number into each Entry field '''
        for i in range(len(self.cols)):
            for j in range(len(self.rowList)):
                sleep(0.25)
                self.set(i,j,"")
                self.update_idletasks()
                sleep(0.1)
                self.set(i,j,i+1+j)
                self.update_idletasks()

    def __headerhandler(self, col, row, text):
        ''' has no effect when Entry state=readonly '''
        self.hdrDict[(col,row)].text.set(text)

    def get(self, x, y):
        return self.gridDict[(x,y)].get()

    def set(self, x, y, v):
        self.gridDict[(x,y)].set(v)
        return v

if __name__ == "__main__":
    cols = ['A', 'B', 'C', 'D']
    rows = ['1', '2', '3', '4']
    app = EntryGrid(cols, rows)

[AruzV]

Thanks bvdet this is helpful for me.

[neilhmurphy]

Thanks

I have found other examples (mostly inadequate), but none showed how to get data into the script.

[muco]

I desided to use tkinter treeview.

[bvdet]

I have found other examples (mostly inadequate), but none showed how to get data into the script.

What data are you trying to get into "the script"?

[neilhmurphy]

No laughing! I want to write a version of Quicken. I was forced to upgrade to Q2010 from Q2001 when I got Win7 64 bit. Q2010 is so awful that I must do something. I have started using GnuCash which is awkward, but a lot better than Q2010.

[neilhmurphy]

Would you add a scroll bar to your example?

[bvdet]

I have never done a scrollbar. I will try adding one when I get some spare time.

[neilhmurphy]

Thanks, you can imagine my difficulties.

[megumi]

can you pls help me,i need to put elemeents from a list into the table and cant figure it out.
