    Connection between 2 points with Draw method

    Hello guys,
    My problem is that when I want to draw 2 points on the form and connect them, the points do not appear but the connections are still on the form. I am using DrawEllipse and DrawLine methods.

    Code:
     public partial class Form1 : Form
        {
            private Point p1, p2;
            List<Point> p1List = new List<Point>();
            List<Point> p2List = new List<Point>();

            public Form1()
            {
                InitializeComponent();
            }

            private void Form1_Paint(object sender, PaintEventArgs e)
            {


                using (var p = new Pen(Color.Blue, 4))
                {
                    for (int x = 0; x < p1List.Count; x++)
                    {
                        e.Graphics.DrawLine(p, p1List[x], p2List[x]);
                    }
                }
     private void Form1_MouseDown(object sender, MouseEventArgs e)
            {

                Graphics gr = this.CreateGraphics();

                int x = e.X;
                int y = e.Y;

                // Create pen.
                Pen whitePen = new Pen(Color.Blue, 3);
                Pen red = new Pen(Color.Red, 3);
                SolidBrush whiteBrush = new SolidBrush(Color.Blue);

                // Create rectangle for ellipse.
                Rectangle rect = new Rectangle(x - 5, y - 5, 10, 10);

                gr.DrawEllipse(whitePen, rect);
                gr.FillEllipse(whiteBrush, rect);

                if (p1.X == 0)
                {
                    p1.X = e.X;
                    p1.Y = e.Y;
                }
                else
                {
                    p2.X = e.X;
                    p2.Y = e.Y;

                    p1List.Add(p1);
                    p2List.Add(p2);

                    Invalidate();
                    p1.X = 0;
                }
             }



            }

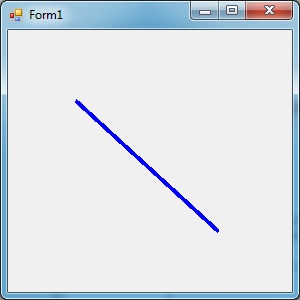

    On the first picture you can see my first click on the form it draws a point and on the second picture the connection is drawn but without the points.
    I need your help please!
